Product Details:
|
Warranty: | 4 Years | Type: | Other |
---|---|---|---|
Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
Condition: | New | Packaging Type: | Case |
Packaging Material: | Wood | Automatic Grade: | Automatic |
Driven Type: | Electric | Voltage: | 380V |
Power: | 25KW | Weight: | 4000 KG |
Dimension(L*W*H): | 4400x1800x2200mm | Key Selling Points: | Easy To Operate |
Raw Material: | Aluminum Foil,paper | Material Thickness: | 12-20micron |

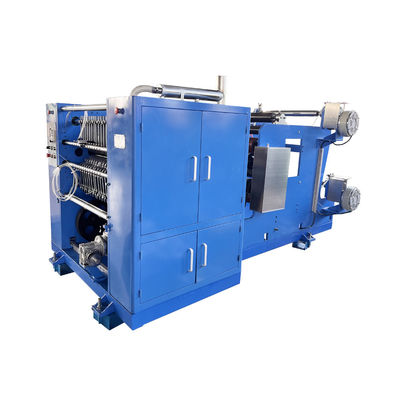

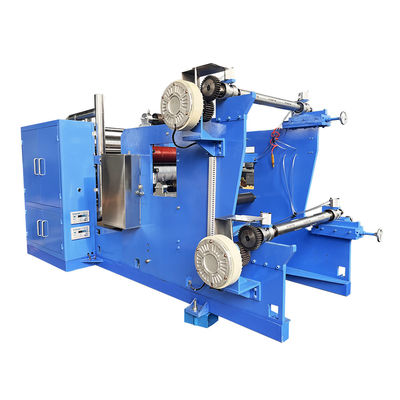

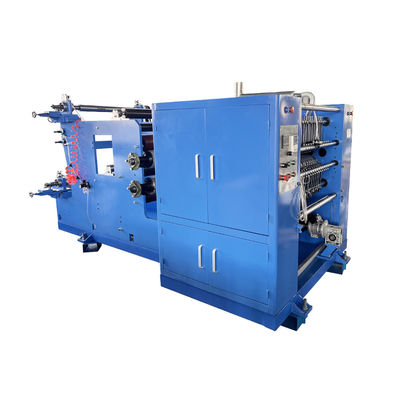

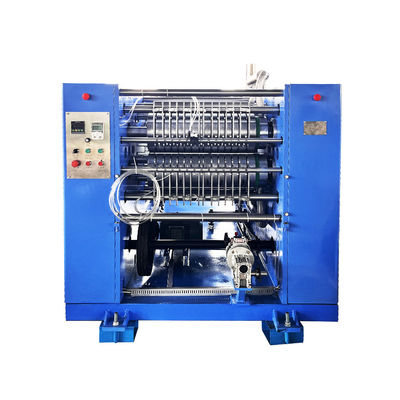

Mother Roll Core Diameter: | 76mm | Name: | Aluminum Foil Pop Up Sheet Machine |
Finished Product Folding Size: | Length 135mm Width 9inches Or 12inches | Processing Capacity: | 250 Sheets/column Points,that Is, 500 Sheets/minute |
item | value |
Installed Power | 25KW(20kw Roots Vacuum Pump +4kw Main Motor+1kwTension) |
Finished product size | length 273 mm x width 9 inches or 12 inches |
Finished product folding size | length 135 mm x width 9 inches or 12 inches |
Finished folded shape | V fold crossed, continuous extraction |

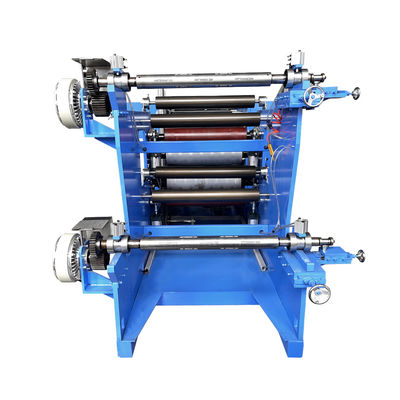

Embossing device | steelonthe polyurethane roller |
Applicable raw materials | 0.01-0.02 mm above the tolerance plus or minus 5% thickness single layer aluminum foil |
Raw material core size | 76 mm(3 inches) |
Material size | ≤ 600 mm * maximum width of 680 mm |
Processing capacity | 250 sheets/column points, that is, 500 sheets/minute |
Slice size | 9 inches 2 columns or 12 inches 2 columns or 9,12 inch each 1 column (please confirm) |
Power required | Roots blower motor: 380V 50Hz 20KW |
Main motor | 380V 50Hz 4KW |
Constant tension motor | 380V 50Hz 1KW |
Machine weight | 4000kg |
Machine size | 4.5m*2m*2m |
Air compress | 0.6MPA |
