Product Details:
|
| Warranty: | 4 Years | Type: | Other |
|---|---|---|---|
| Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
| Condition: | New | Packaging Type: | Case |
| Packaging Material: | Wood | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 380V |
| Power: | 25KW | Weight: | 4000 KG |
| Dimension(L*W*H): | 4400x1800x2200mm | Key Selling Points: | Easy To Operate |
| Raw Material: | Aluminum Foil,paper | Material Thickness: | 12-20micron |

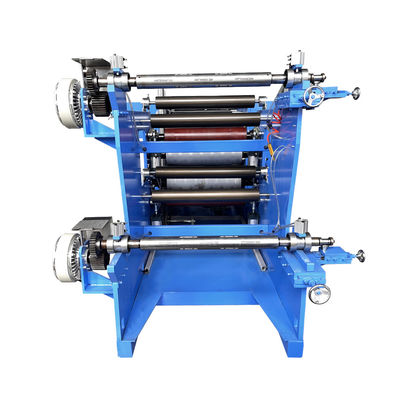

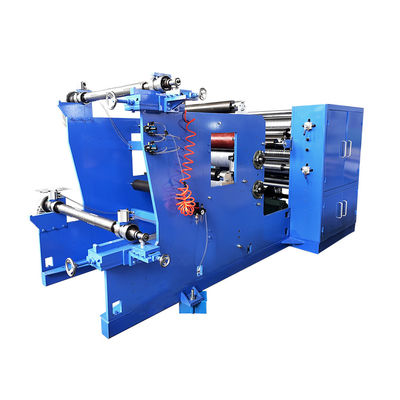

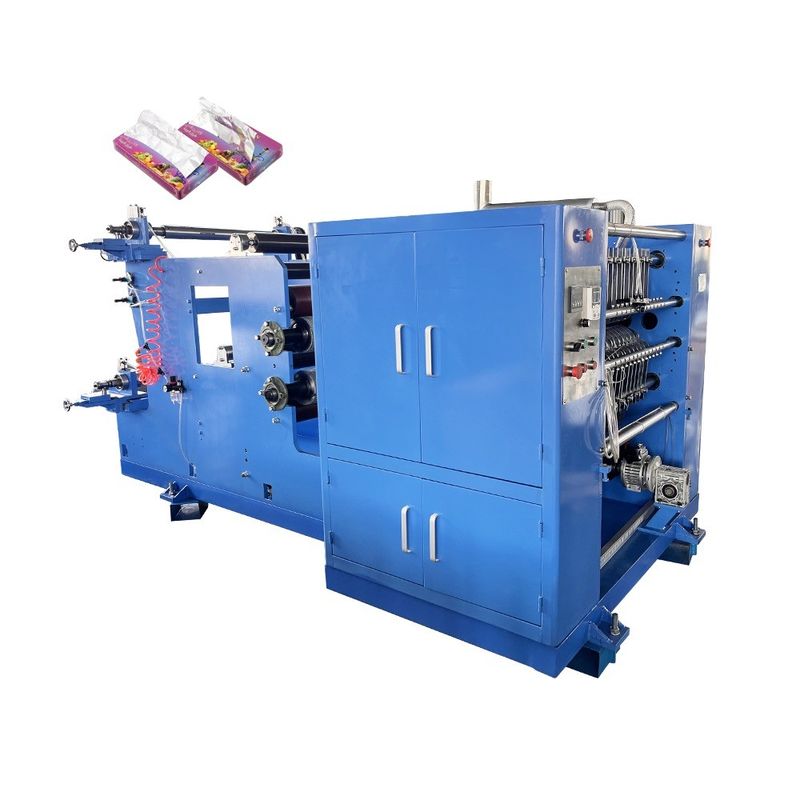

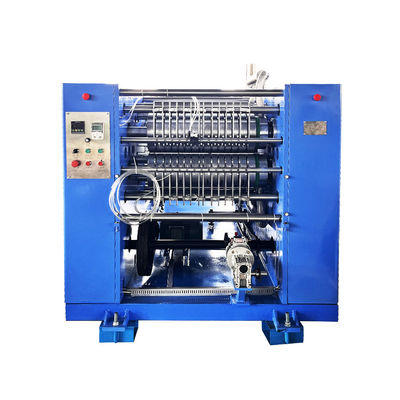

| Mother Roll Core Diameter: | 76mm | Name: | Aluminum Foil Folding Machine |
| Finished Product Folding Size: | Length 135mm Width 9inches Or 12inches | Processing Capacity: | 250 Sheets/column Points,that Is, 500 Sheets/minute |
| Port: | Shanghai |
|
item
|
value
|
|
Installed Power
|
25KW(20kw Roots Vacuum Pump +4kw Main Motor+1kwTension)
|
|
Finished product size
|
length 273 mm x width 9 inches or 12 inches
|
|
Finished product folding size
|
length 135 mm x width 9 inches or 12 inches
|
|
Finished folded shape
|
V fold crossed, continuous extraction
|
|
Embossing device
|
steelonthe polyurethane roller
|
|
Applicable raw materials
|
0.01-0.02 mm above the tolerance plus or minus 5% thickness single layer aluminum foil
|
|
Raw material core size
|
76 mm(3 inches)
|
|
Material size
|
≤ 600 mm * maximum width of 680 mm
|
|
Processing capacity
|
250 sheets/column points, that is, 500 sheets/minute
|
|
Slice size
|
9 inches 2 columns or 12 inches 2 columns or 9,12 inch each 1 column (please confirm)
|
|
Power required
|
Roots blower motor: 380V 50Hz 20KW
|
|
Main motor
|
380V 50Hz 4KW
|
|

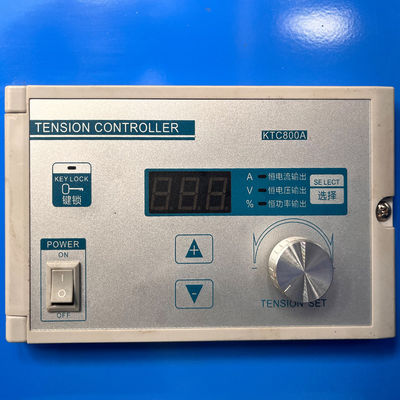

Constant tension motor
|
380V 50Hz 1KW
|
|
Machine weight
|
4000kg
|
|
Machine size
|
4.5m*2m*2m
|
|

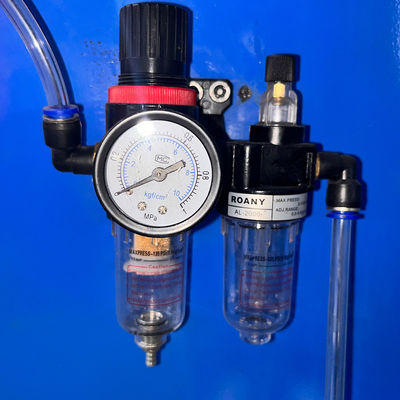

Air compress
|
0.6MPA
|
