7.5KW Main Motor Power Automatic Aluminum Foil Container Making Machine

Large Image : 7.5KW Main Motor Power Automatic Aluminum Foil Container Making Machine

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	finest
Model Number:	AF-45AT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$36,000.00/sets 1-1 sets

Contact Now

7.5KW Main Motor Power Automatic Aluminum Foil Container Making Machine

Description

CNC Or Not:	CNC	Condition:	New
Machine Type:	Punching Machine	Slide Stroke (mm):	240mm
Power Source:	Mechanical	Voltage:	220v/60Hz,380V/50Hz
Dimension(LWH):	1800mm2300mm1700mm	Motor Power (kW):	7.5KW
Weight (T):	5	Key Selling Points:	Long Service Life
Warranty:	4 Years	Applicable Industries:	Manufacturing Plant
Showroom Location:	None	Marketing Type:	Hot Product
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	4 Years	Core Components:	Motor, PLC
After-sales Service Provided:	4 Years	Product Name:	Aluminium Food Container Making Machine
Main Motor Power:	7.5KW	Max.Pressure:	450kn
Max.Material Width:	750mm (OEM)

Product Description

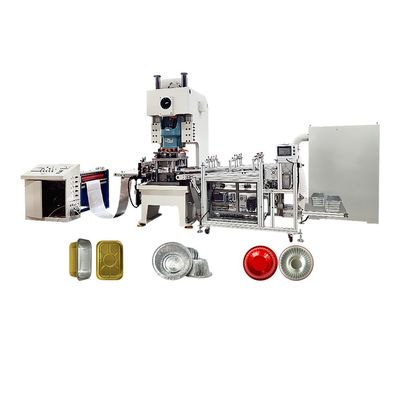

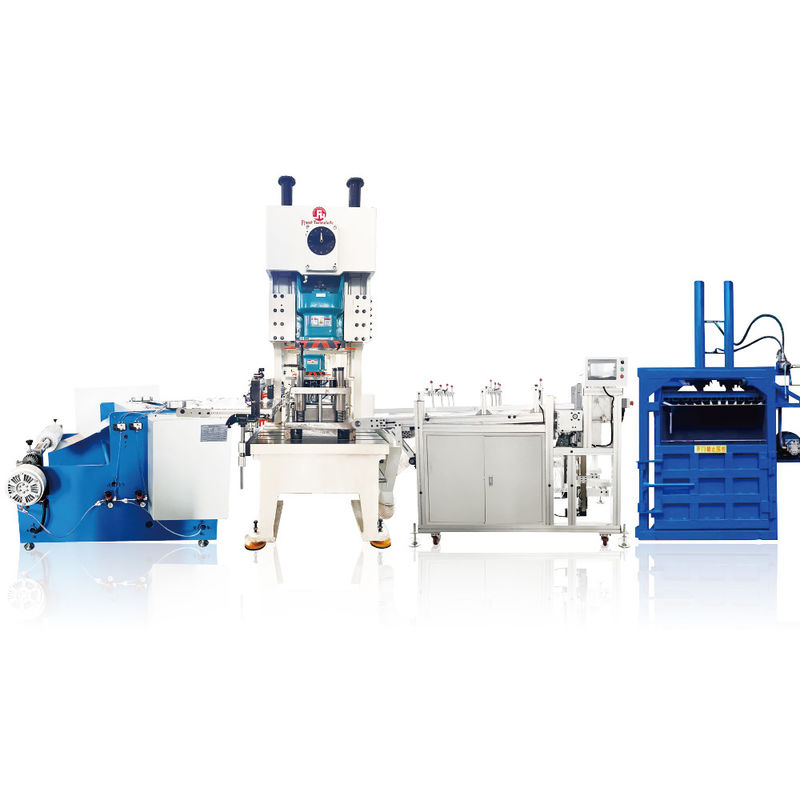

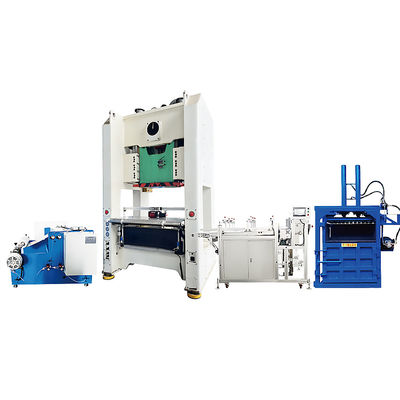

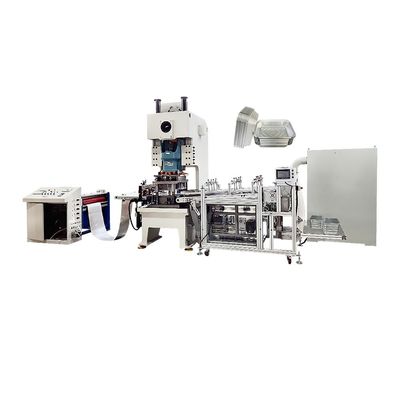

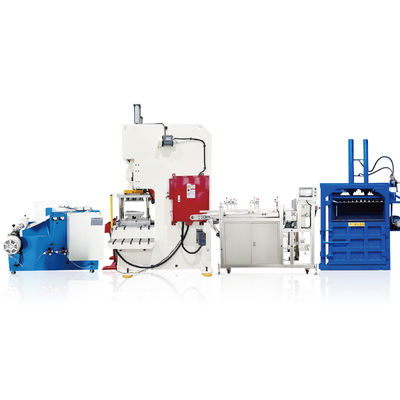

Fully automatic aluminum foil container making machine

Components:1. Automatic decocter and feeding head. 2.Siemens motors, Mitsubishi PLC, ABB Inverter
3. 45 ton Ward brand open type
punching machine
4. Mold.
5. Automatic stacker, 1-4 lanes (optional).
6. Scrap suction machine and press.

Automatic feeding machine

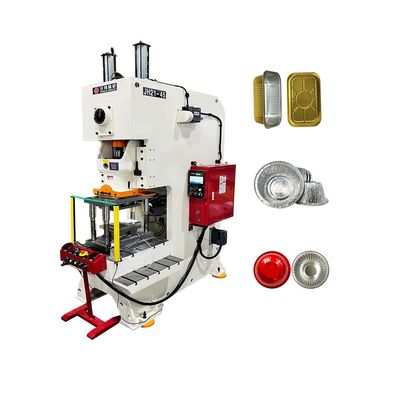

punching machine

Automatic stacker, 1-4 lanes (optional)

The moulds we can design and produce are as follows:

1.The molds that we design and produce are suitable for almost every kind of machine or press. 2. We produce mold with the best
quality steel in China. And some main mould areas are made high-temperature heat treatment for proper hardness, which ensure molds
are in top quality and long life. 3. We can design and produce the mold in multi-cavities, 1, 2, 3, 4 cavities or more.no matter
it is one compartment container or multi-compartments container. 4. We can print your preferred logos upon request. 5.Scientific
design make the Cutting Scrap Rate under good control. 6. Container shapes: square, rectangular,

The advantages as below:

1.Top Safety and long lifetime,high precision control of feeding step and speed. 2.Add oiling device (stamping oil) to save cost
3.Wet clutch, long service life, low noise
4.The replacement of the mold is convenient and easy to change.
5.It’s suitable for large size single cavity,medium and small size multi-cavity molds.
6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.

Specification

Item	value
Condition	New
Brand Name	Finest
Dimension(LWH)	2500mm1300mm1600mm
Weight	5500KG
Voltage	380v/50Hz
Power	Feeding Machine Power:1.5KW, Double Track Collector Power:3KW, Press Power:7.5KW
Machinery Capacity	40-80pcs/min(1cavity),80-160pcs/min(2cavities)
Key Machines	Feeding Machine, Press Dimension, Double Track Collector, Scrap Baler Machine
