Product Details:
|
Warranty: | 4 Years | Type: | Other |
---|---|---|---|
Applicable Industries: | Manufacturing Plant | Showroom Location: | None |
Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
Warranty Of Core Components: | 4 Years | Core Components: | PLC, Motor |
Condition: | New | Application: | Commodity |
Packaging Type: | Film, Case | Packaging Material: | Plastic, Wood |
Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V | Power: | 4kw |
Weight: | 1600 KG | Dimension(L*W*H): | 3500mm*1800mm*2100mm |
Key Selling Points: | Easy To Operate | Production Capacity: | 20-40pcs/min |

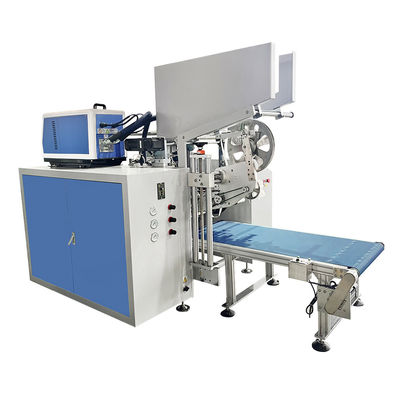

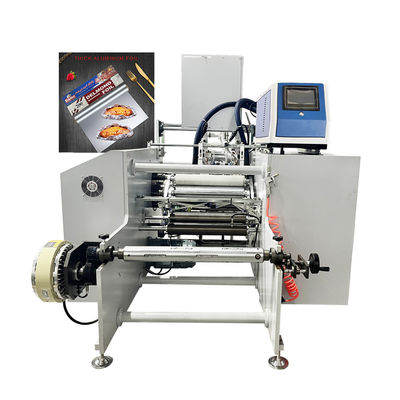

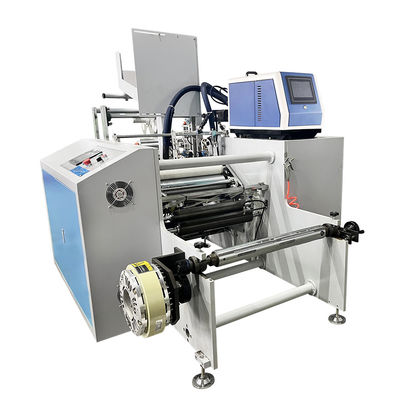

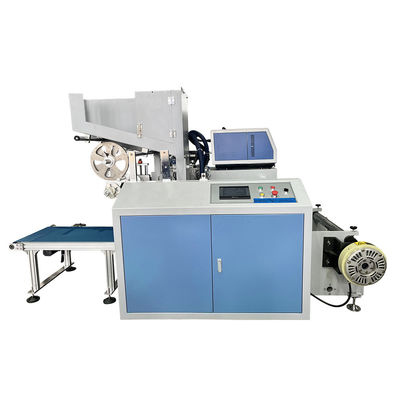

Product Name: | Aluminum Foil Slitting Machine | Advantage: | High Efficency |
After Warranty Service: | Online Service | Size: | 3500*1800*2100mm |
item | value |
Rewinding Material | Aluminum foil, baking papersilicon paper plastic bag |
Width of material | 260-450mm |
Width of products | 260-450MM |
Diameter of un-winder roll(Max) | 700mm |
Diameter of re-winder roll(Max) | ф90mm |
Core size of un-winder | 3" or 6" |
Core size of re-winder | 30mm,35mm or 38mm(customized available) |
Rewinding speed | 350m/min |
Thickness of material | 0.009-0.025mm |
Productivity | 20-40pcs/min |
Main motor | 4kw |
Air pressure | ≥ 0.5Mpa |
Weight | 1600kg |
Size | 3500*1800*2100mm |
