Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic

I'm Online Chat Now

Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic

Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic

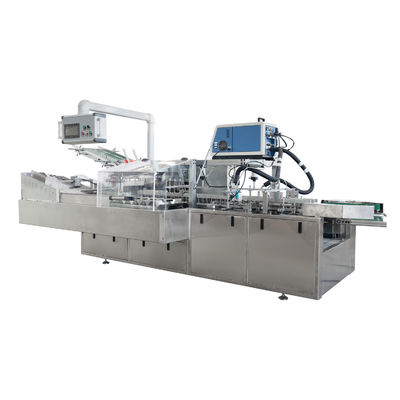

Large Image :  Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Finest
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $28,000.00/sets 1-1 sets
Packaging Details: Wooden case
Supply Ability: 5 Set/Sets per Week

Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic

Description
Warranty: 4 Years Type: Other
Applicable Industries: Packaging Industry Showroom Location: None
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Warranty Of Core Components: 4 Years Core Components: PLC, Motor
Condition: New Packaging Type: Case
Packaging Material: Wood Automatic Grade: Automatic
Driven Type: Electric Voltage: 380V
Power: 1.5KW Weight: 1200 KG
Dimension(L*W*H): 3200*1350*1600mm Key Selling Points: Easy To Operate
Product Name: Aluminum Foil Roll Color Box Cartoning Machine Production Efficiency: 65 Boxes/min
Air Consumption: 20m3/hour Air Pressure: 0.7mpa

Products Description
The machine is a new product developed by our company. It has wide application range, high efficiency, stable operation, and can be used for the packaging of aluminum foil, medicine, food and cosmetics.
Item
Value
Product Name
Automatic Cartoning Machine
Carton Quality
250-600g/ ㎡
Carton Maximum Size
200*60*60mm
Carton Minimum Size
70*35*14mm
Maximum production effcieng
50-65boxes/min
Air Consumption
20m3/hour
Air Pressure
0.7Mpa
Engine Model
OMRON Control
Overal Dimension
3200*1350*1600mm
Total Power
approx 1.5KW
Total Weight
approx 1200Kg
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 0
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 1




1, can automatically complete the carton molding, open, box packing, sealing and so on. And can be hot melt adhesive system with hot melt adhesive sealing.




2, the machine using PLC control. Photoelectric monitoring of various parts of the action, abnormal operation, can automatically shut down to show the reasons in order to promptly troubleshooting.
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 2
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 3



3, the rack is equipped with the main drive motor and clutch brake, and the board is equipped with various parts of the transmission system torque overload protection, can be overloaded in the case, the main drive motor and the drive part of the disconnect, to ensure that the whole The safety of the machine.




4, the machine is equipped with intelligent detection device. No material automatically no less than the carton, convenient and the former equipment linked to work. In the detection process found that the empty box that is removed at the exit to ensure that the product quality to meet the requirements of qualified.
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 4
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 5




5, the machine can be based on the user's different requirements, can replace the packaging specifications, adjustment and debugging is simple, that is applicable to the production of large quantities of a single species
Company Profile
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 6
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 7
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 8
Jiangsu Finest Technology Co., Ltd.
Is a company dedicated to the research, development, production and sales of aluminum foil products and aluminum foil product machine related products. More than 27 years of advanced production management experience in the aluminum foil machine production line, with a wide range, good quality, reasonable price and fashionable design. For example, aluminum foil for food packaging, hairdressing foil, barbecue paper, large aluminum foil roll, aluminum foil container, aluminum foil rewinder, manual aluminum foil cutter and aluminum foil container production line. With the pace of globalization, our company spares no effort to become a first-class supplier of such products.
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 9
Certifications
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 10
Exhibition
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 11
Customer Photos
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 12
Product packaging
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 13
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 14
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 15
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 16
FAQ
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 17
Automatic Glue Type Box Cartoning Machine for Full Grade Wood Packaging Full Automatic 18
